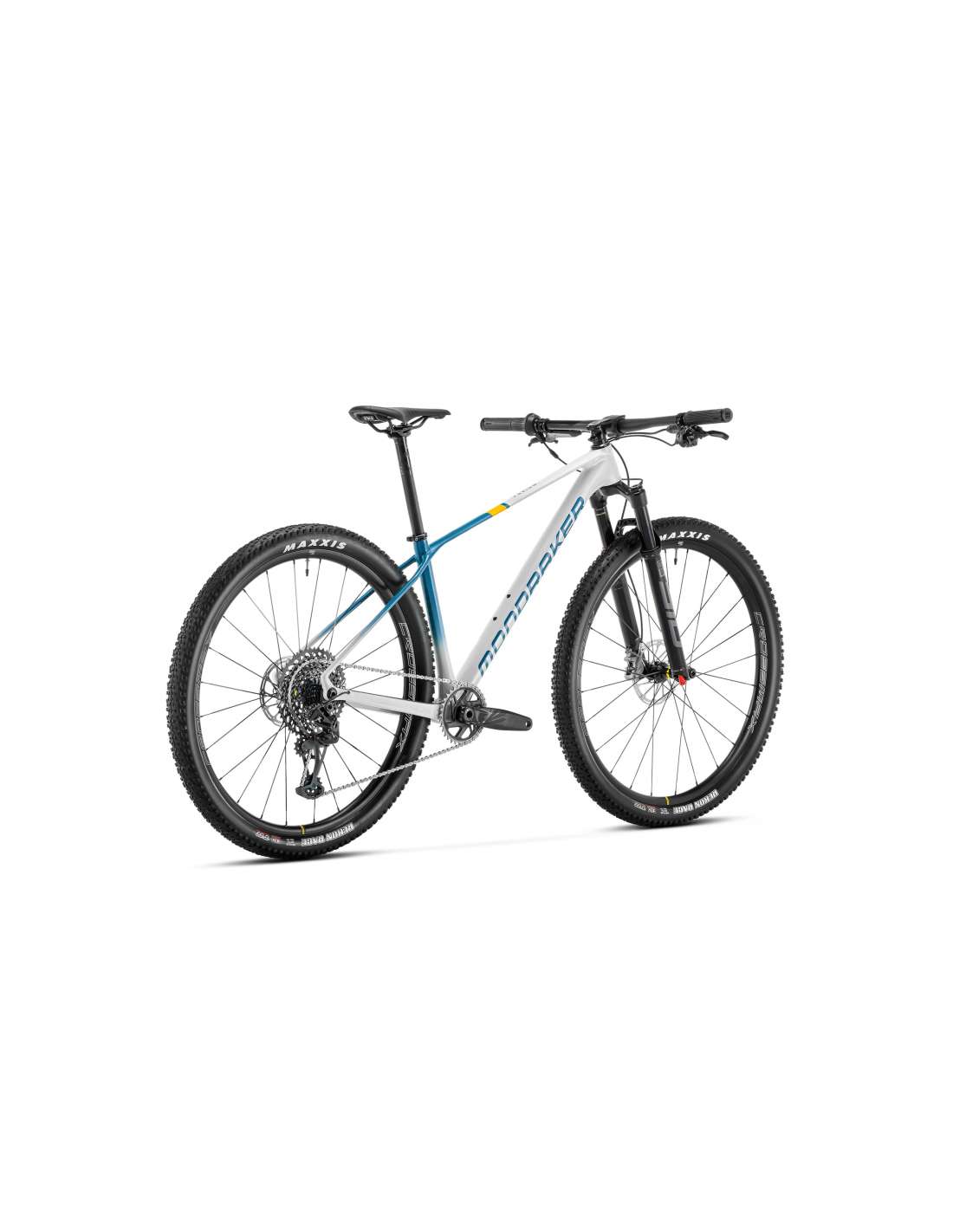

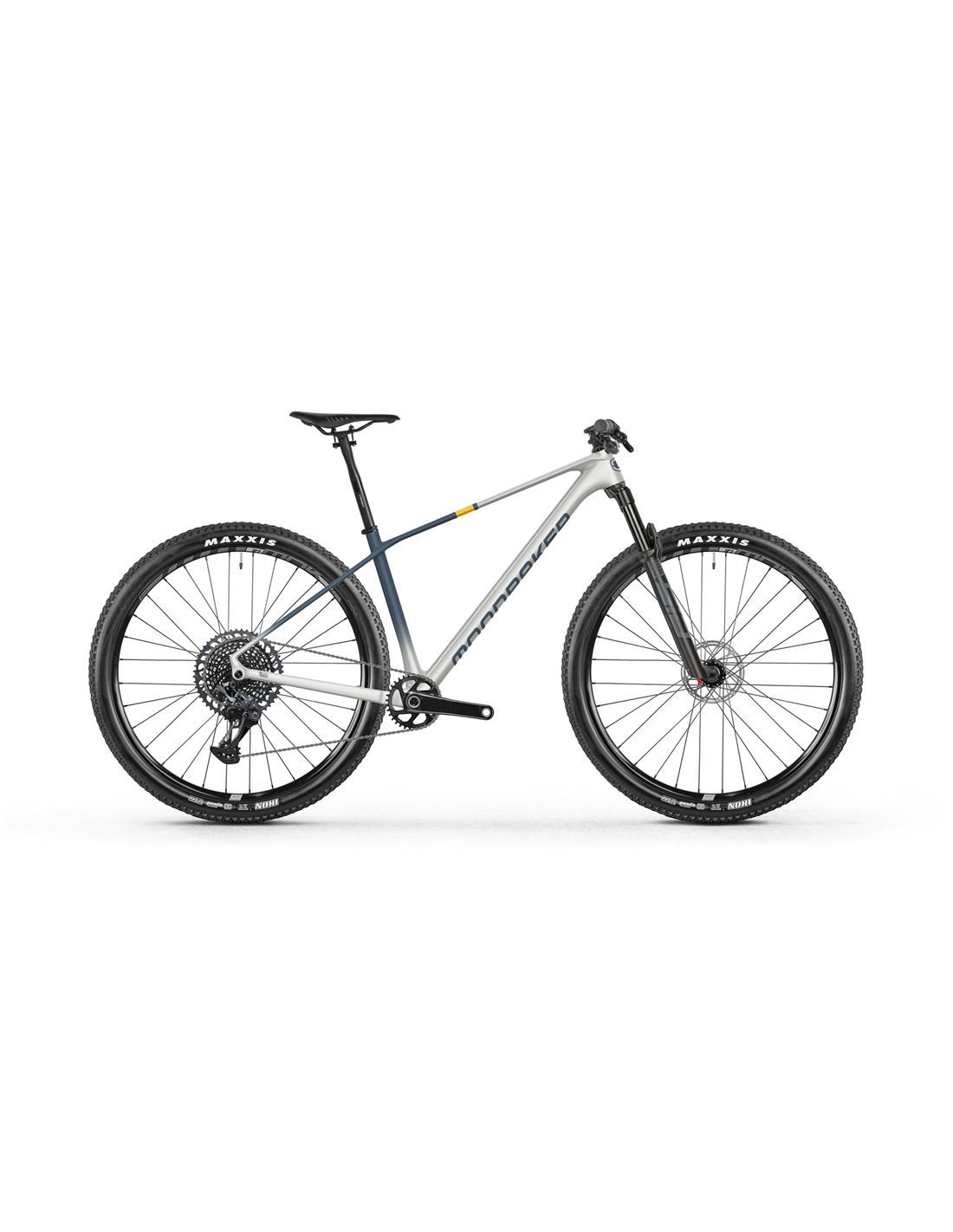

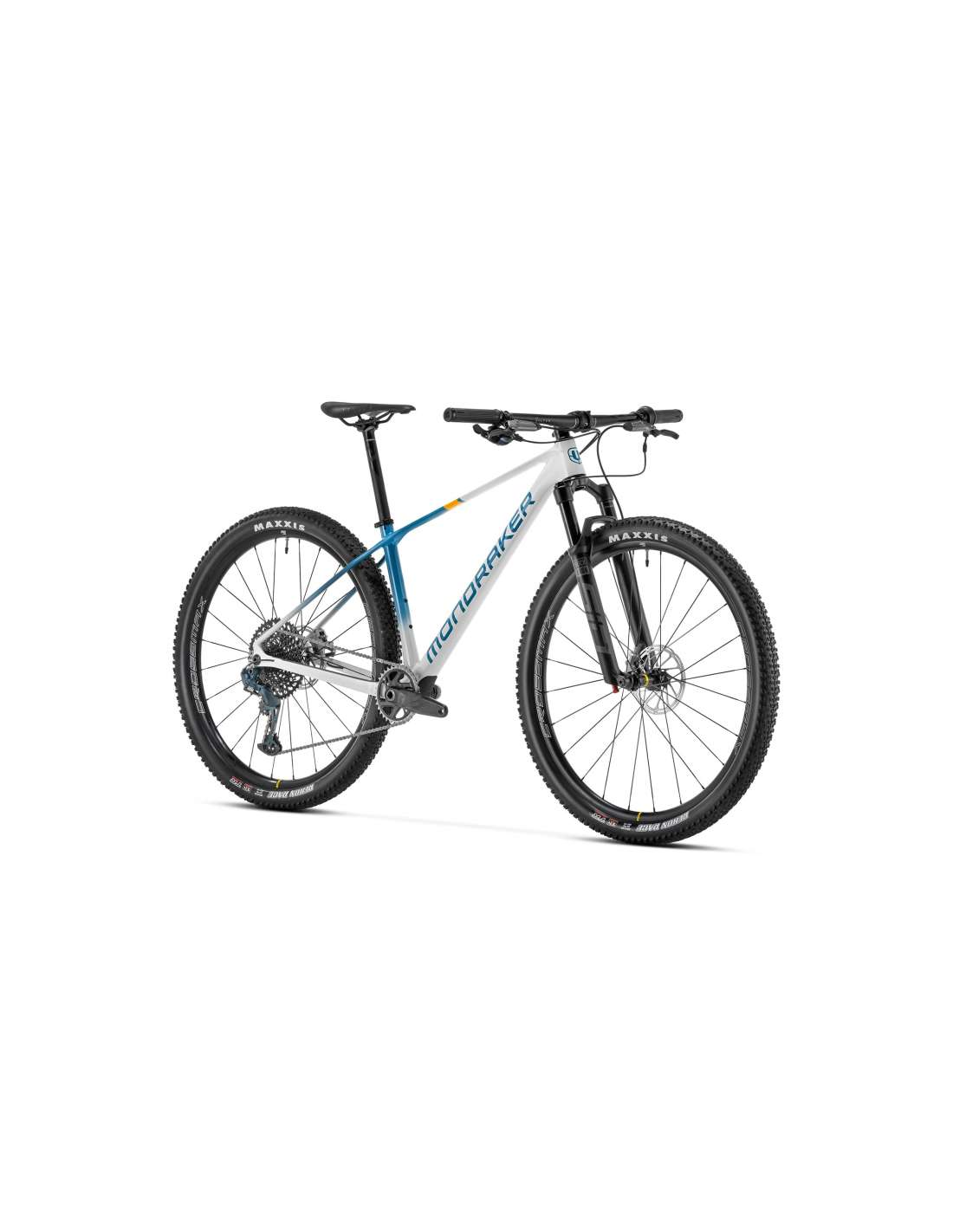

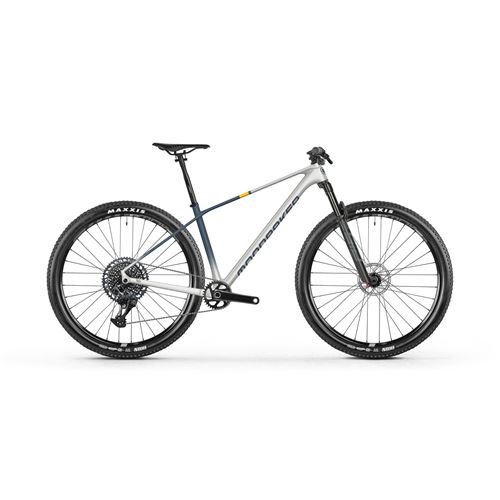

MONDRAKER PODIUM 2024

Mondraker Podium 2024

-Cuadro: Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,

-Tallas: S: 390mm / M: 420mm / L: 470mm / XL: 510mm

-Horquilla: Rockshox SID SL Base RL 2P Remote 29, 100mm, Charger, DebonAir, tapered steerer tube, Boost 15x110mm axle, 32mm aluminum stanchions, offset 44mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload

-Mando remoto horquilla: RockShox TwistLoc Base FullSprint 125 B1 2 Position (10mm), Twist to lock, Twist to unlock

-Dirección: Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º

-Potencia: MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 60mm, M size: 60mm, L size: 70mm, XL size: 80mm

-Manillar: Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore

-Puños: Onoff Twin, 1lock-on, 135mm

-Tija: Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm

-Sillin: Fizik Antares R8

-Freno delantero: Sram Level Bronze 2P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

-Freno trasero: Sram Level Bronze 2P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

-Manetas de freno: Sram Level Bronze, tools-free reach adjust, lever pivot bushings

-Llantas: Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes

-Radios: Mavic straight-pull double butted, contactless lacing

-Buje delantero: Mavic, Boost 15x110mm, IS 6 bolts

-Buje trasero: Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub

-Neumático delantero: Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead

-Neumático trasero: Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead

-Bielas: Sram GX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 53

-Platos: 34T, CNC-machined alloy, X-SYNC 3

-Eje de pedalier: Sram DUB BSA, sealed bearings, 73mm

-Cadena: Sram NX Eagle, 12s, Powerlock

-Cambio - trasero: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:2

-Mandos - pulsadores de cambio: Sram Trigger GX Eagle, 12s, X-Actuation 1:2

-Piñones: Sram XG-1275, 10-50T, 12s

-Patilla de cambio: Sram UDH
