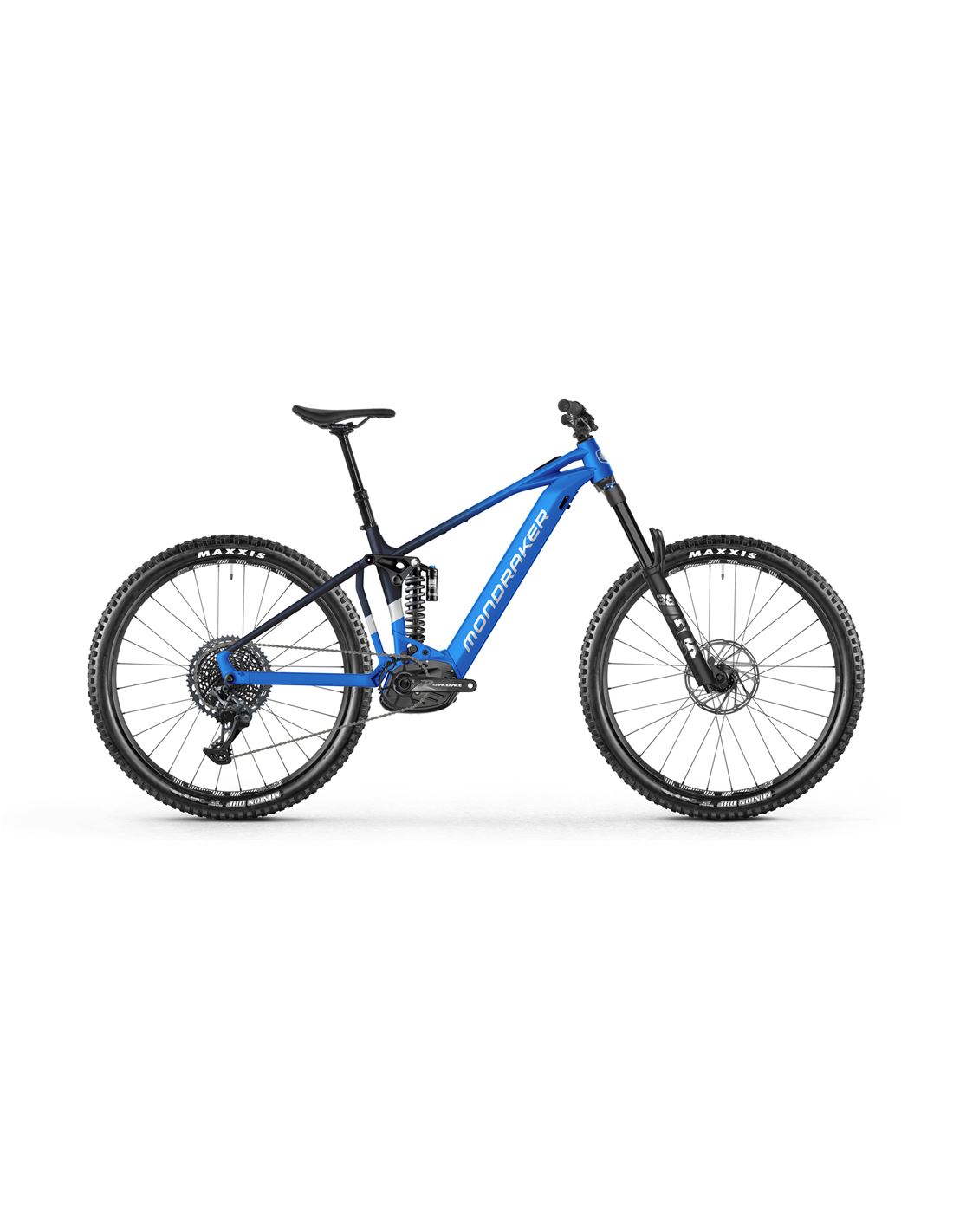

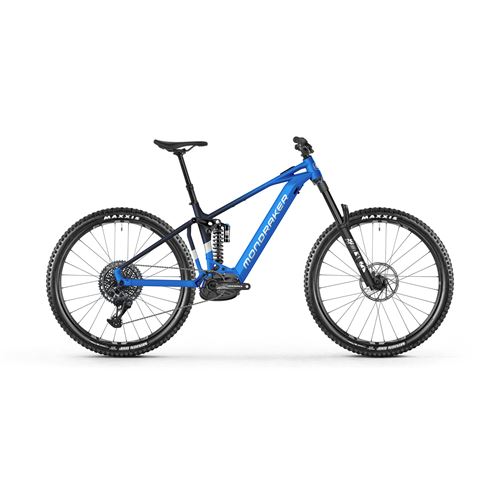

Mondraker Level R 2024

Mondraker Level R 2024

Picture: Level 6061 Alloy Stealth Evo, Zero Suspension System optimized for e-bike, 170mm travel, Forward Geometry, non-removable internal battery, 12x148mm Boost rear axle, tapered head tube, one-piece Monobloc upper link, HHG internal cable routing system, MAX sealed bearings, 17mm oversized axles, speed sensor integrated into the dropout, exclusive plastic motor covers.
-Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mm
-Shock Absorber: RockShox Super Deluxe Coil Select R, 225x75mm. Adjustments: external end of travel, low-speed rebound, spring preload. Trunnion top mount, lower bushings of 25x10mm.
-Shock absorber adjustment: Medium compression, linear rebound. Spring hardness: (according to bike size) S=300 lbs, M=300lbs, L=350 lbs, XL=400 lbs
-Fork: RockShox ZEB Select Charger RC 29, 180mm, optimized for e-bike, tapered steerer tube, 15x110mm Boost axle, 44mm offset. Adjustments: low-speed compression, low-speed rebound, air preload.
-Address: ONOFF Saturn profiled for steering tube of 1-1/8" to 1-1/2", ACB sealed bearings, upper part 41x30.2x7x45ºx45º, lower part 51.9x40x8x45ºx45º
-Power: ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm diameter
-Handlebar: ONOFF Sulfur 1.0 biconified in 6061 alloy, rise: 20mm, width: 800mm, back sweep: 9º, up sweep: 5º, diameter of 31.8mm
-Fists: ONOFF Twin, 1 lock-on, 135mm
- Seatpost ONOFF Internal wiring sleeve, 31.6mm diameter, 1 remote control with bearing, size S: 405x95-125mm, M: 458x120-150mm, L: 498x140-170mm, XL: 558x170-200mm
-Saddle: FIZIK Terra Aidon X5 145mm
-Front brake: SRAM DB8, oversized 4-piston clamp, one-piece 220mm Centerline disc IS with 6 screws, sintered pads made of steel sheet.
-Rear brake: SRAM DB8, oversized 4-piston clamp, one-piece 200mm Centerline disc with 6 IS screws, sintered steel sheet pads.
-Brake levers: SRAM DB8, scope adjustment with tools, lever axis with bushings
-Tires: e*thirteen E*Spec, IW30 Hookless, 6069 welded aluminum, 30mm internal width, tubeless ready, 28 spokes on the front wheel / 32 spokes on the rear wheel
-Radios: e*thirteen, customized in the shape of J, triconified steel, alloy nipples, with nipple washers
-Front hub: e*thirteen 15x110mm Boost, triple-sealed, 100% machined aluminum, 6-bolt IS
-Rear hub: e*thirteen 12x148mm Boost, triple-sealed, 100% machined aluminum, with a return angle of 6º, IS with 6 screws, HG free hub.
-Front tire: Maxxis Assegai 29x2.5WT; tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, with folding rim
-Rear tire: Maxxis Assegai 29x2.5WT; tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, with folding rim
-Crankshafts: Race Face Aeffect ebike, 165mm
-Dishes: SRAM X-Sync 2 Eagle, 34 teeth, steel, narrow and wide design, 104 BCD
-Chain: SRAM SX Eagle, 12v, Powerlock
-Rear - change: SRAM GX Eagle, clutch with type 3 roller bearings, box lock, 1x12v, X-Actuation 1:1
-Controls - shift buttons: SRAM Trigger NX Eagle, 12v, X-Actuation 1:1, single-click speed change
-Pine nuts: SRAM PG-1210 11-50 teeth, 12v
-Derailleur hanger: Mondraker M068
-Weight without pedals: 26.7 kg
-DisplayYou didn't provide any text. Please provide the text you want translated. Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
-Engine: Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
-Battery: Bosch Powertube 750Wh
