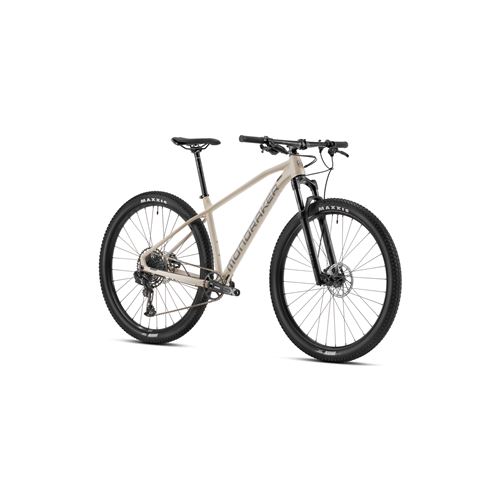

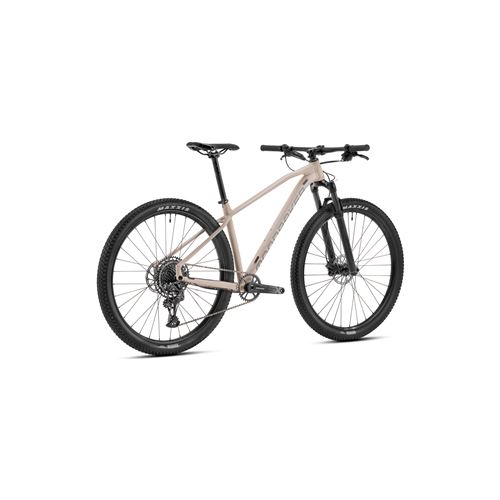

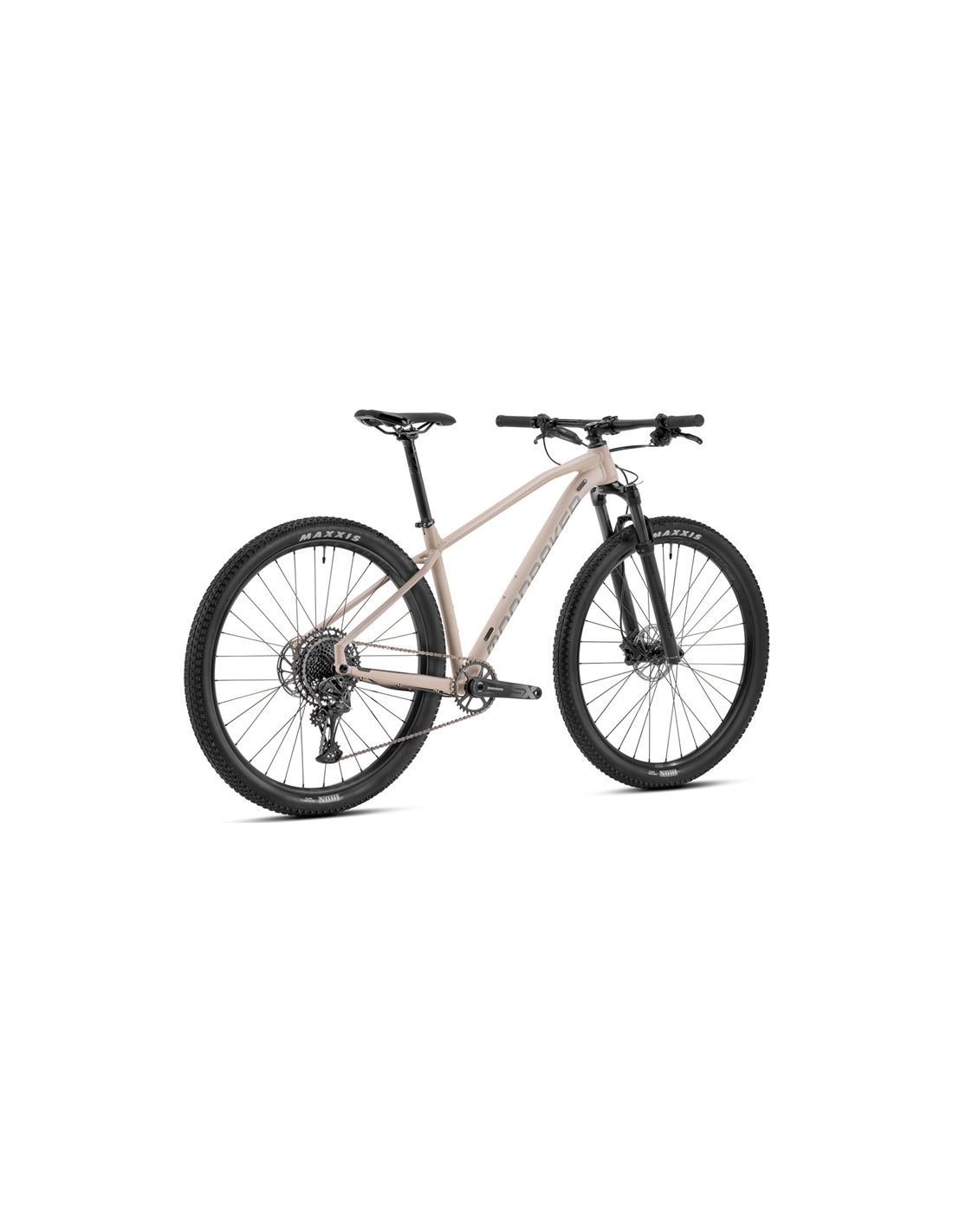

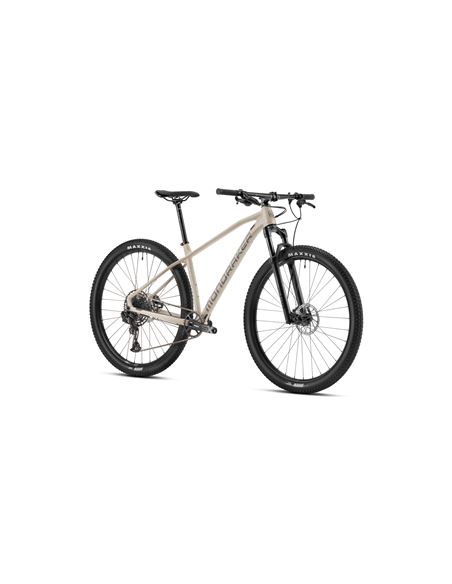

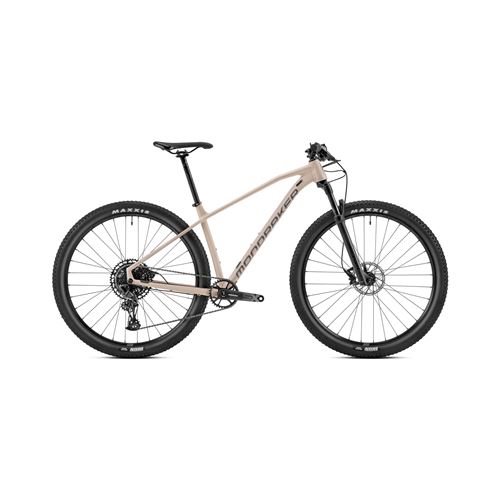

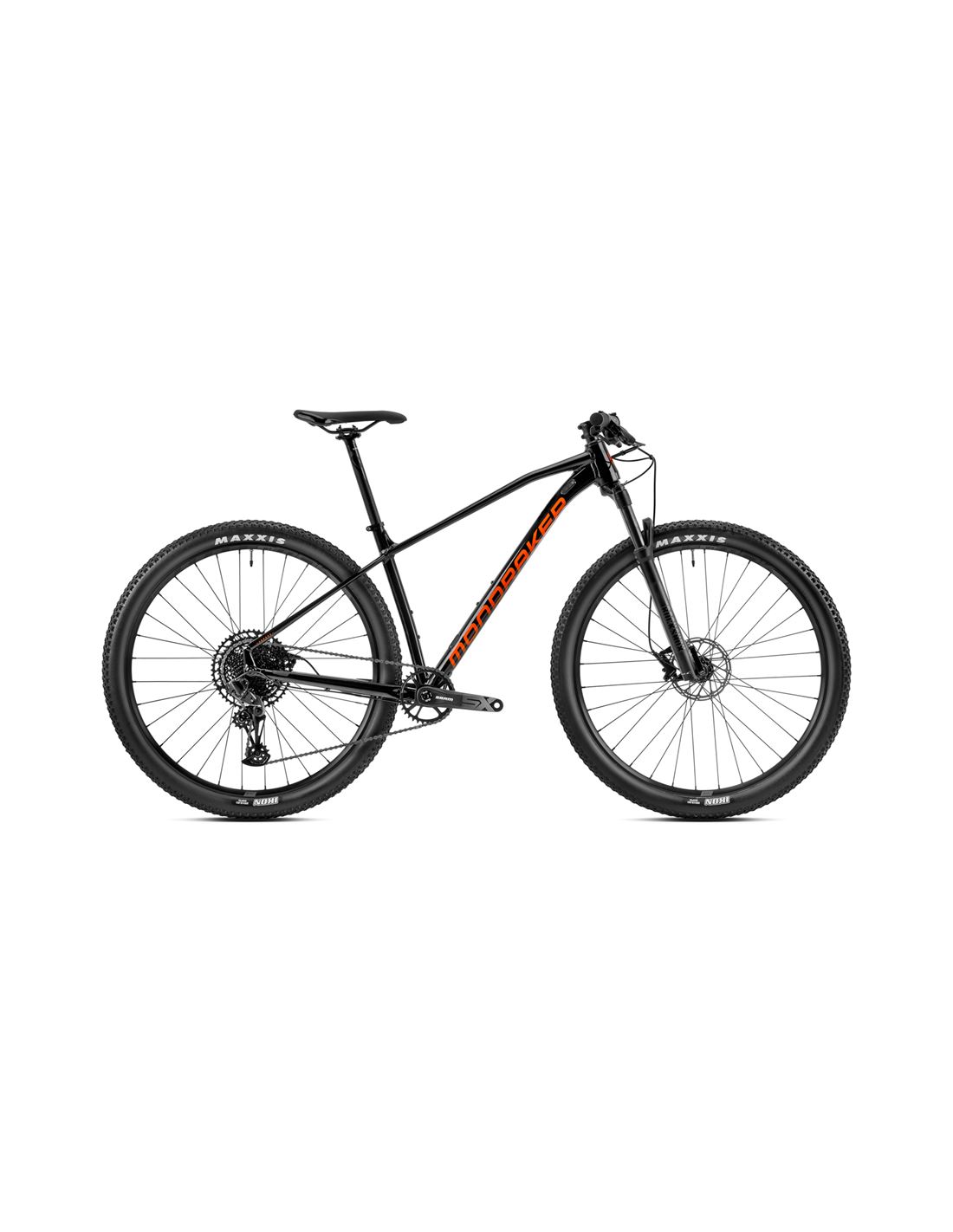

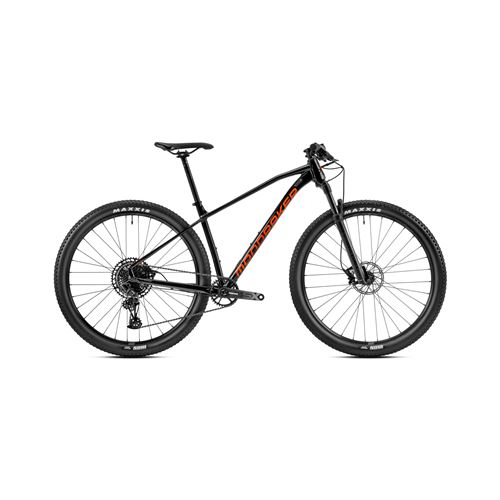

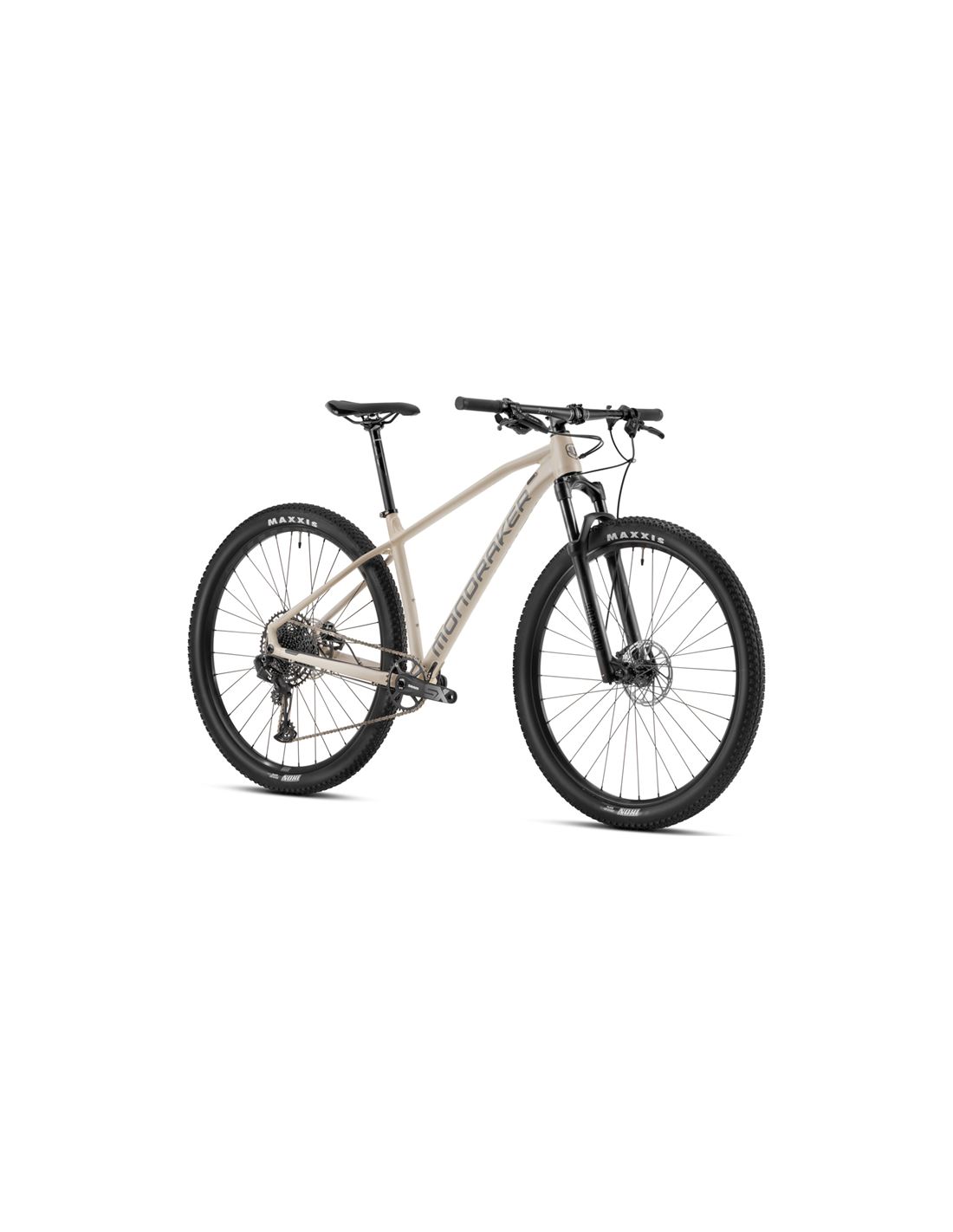

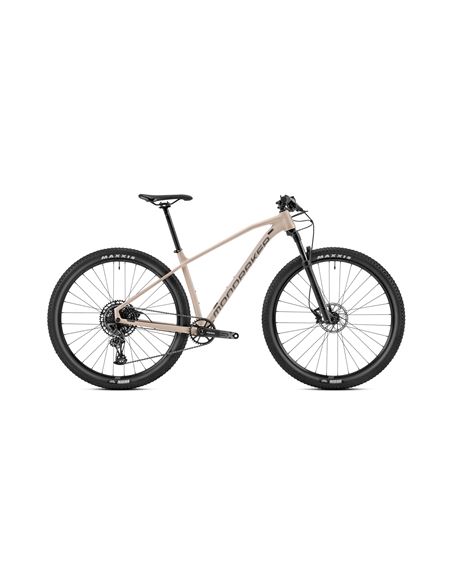

MONDRAKER CHRONO 2023

MONDRAKER CHRONO 2023

Its frame made of 6061 Xtralite aluminum, enjoys our XC FORWARD GEOMETRY that will provide you with an optimal position to take advantage of all the force applied to the pedals and, great security and confidence when facing descents.

Frame

Chrono 29 Stealth Alloy, XC Forward Geometry, 73mm BSA bottom bracket, profiled head tube, HHG internal cable system, 12x148mm Boost rear axle.


Sizes

S: 395mm / M: 430mm / L: 470mm / XL: 520mm


Fork

RockShox Judy Silver TK 29, 100mm, TurnKey, Solo Air, profiled head tube, 9x100mm axle, 30mm steel bars, 46mm offset. Adjustments: 2-position remote PopLock compression (open/lock), rebound, air preload


Direction

ONOFF Saturn profiled for 1-1/8” to 1-1/2” tube, ACB sealed bearings, top 41x30,2x7x45ºx45º, bottom 51,9x40x8x45ºx45º


Fork remote control

RockShox PopLoc


Stem

ONOFF Sulfur, 6061 T6 Alloy, for 31.8mm handlebar, height +/-7º, size S/M: 60mm, L: 80mm, XL: 90mm


Handlebar

ONOFF Sulfur 0.2, double butted 6061 alloy, height: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, diameter 31.8mm


Grips

ONOFF Twin, 1 lock-on, 135mm


Seatpost

ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm


Saddle

Mondraker XC series, steel rails


Front brake

SRAM Level, two-piece caliper, Centerline 6-bolt IS 160mm one-piece disc, organic pads


Rear brake

SRAM Level, two-piece caliper, Centerline 6-bolt IS 160mm one-piece disc, organic pads


Brake levers

SRAM Level, tool-adjustable reach, lever axle with bushings


Rims

MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes


Spokes

CN stainless round


Front hub

Formula DC20LW, 9x100mm, cone bearings, IS 6 bolts


Rear hub

Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts


Front tire

Maxxis Ikon 29x2.20, 60TPI, rigid rim


Rear tire

Maxxis Ikon 29x2.20, 60TPI, rigid rim


Crankset

SRAM SX Eagle, Boost, DUB axle, Direct Mount, S: 170mm, M/L/XL: 175mm


Chainring

34, steel, X-SYNC 2


Bottom bracket

SRAM DUB BSA, sealed bearings, 73mm


Chain

SRAM SX Eagle, 12v, Powerlock


Rear derailleur

SRAM SX Eagle, Type 3 clutch with needle bearings, box lock, long box 1x12v, X-ACTUATION 1:1


Shift levers

SRAM Trigger SX Eagle, 12v, X-ACTUATION 1:1


Cogs

SRAM PG-1210, 11-50T, 12v


Change hanger

Mondraker M068
