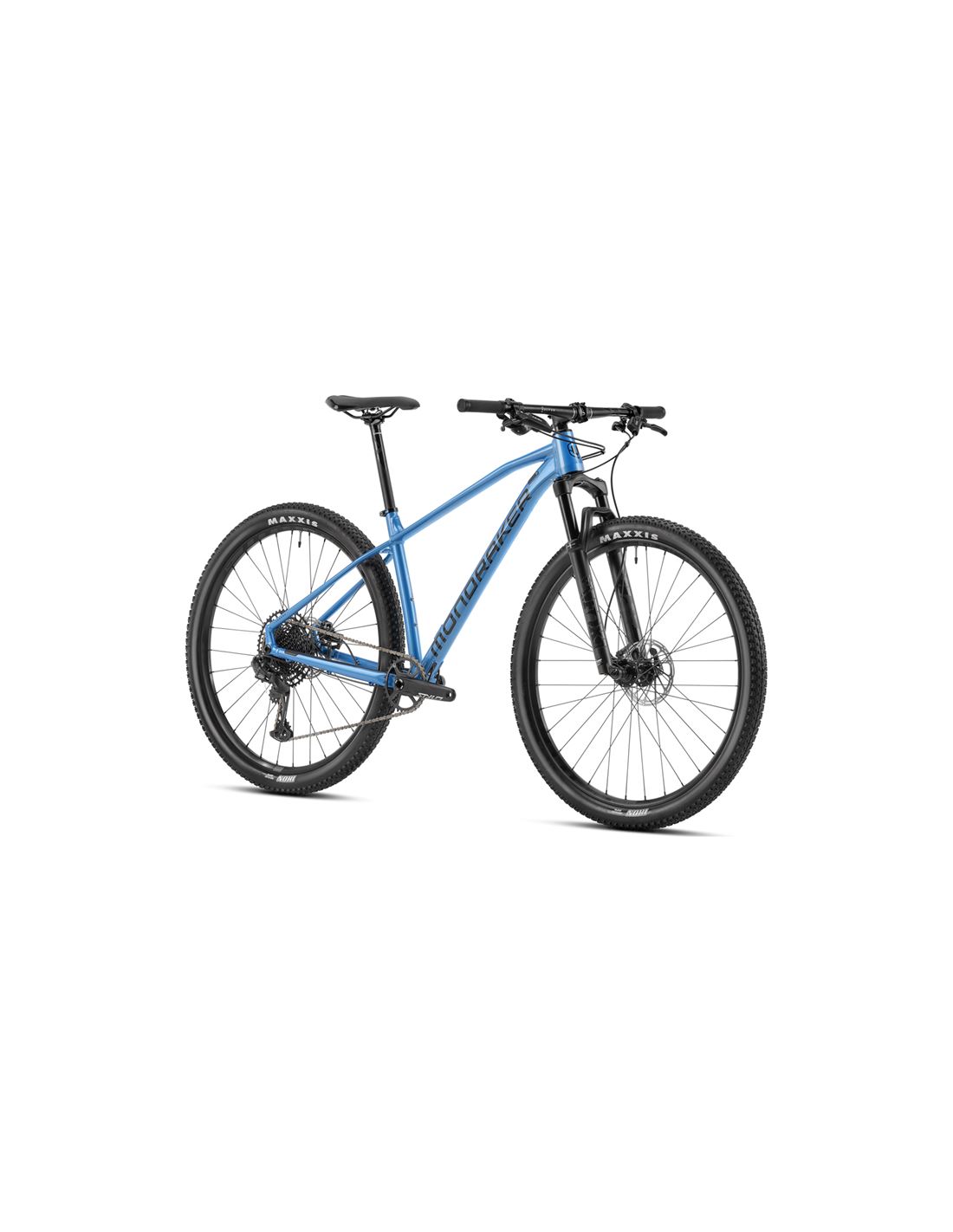

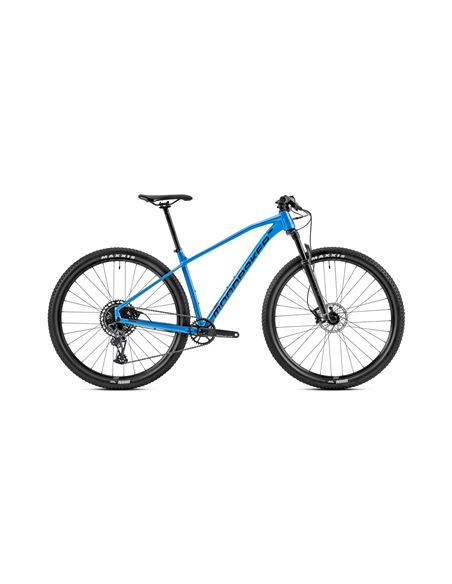

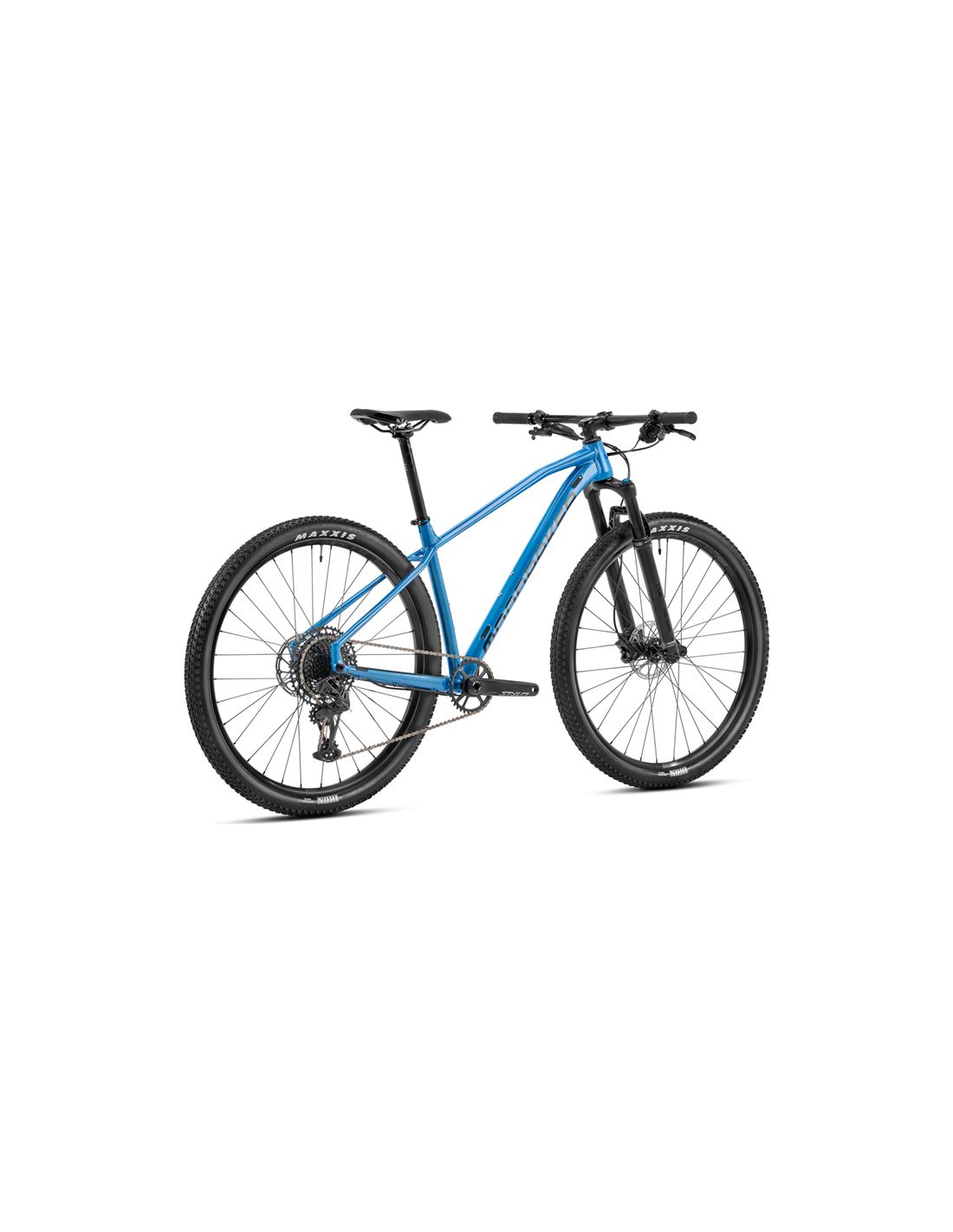

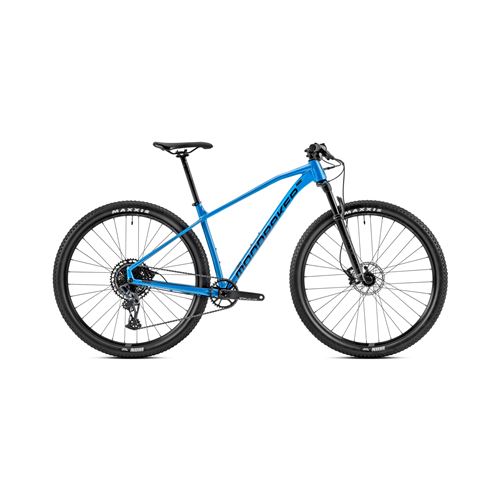

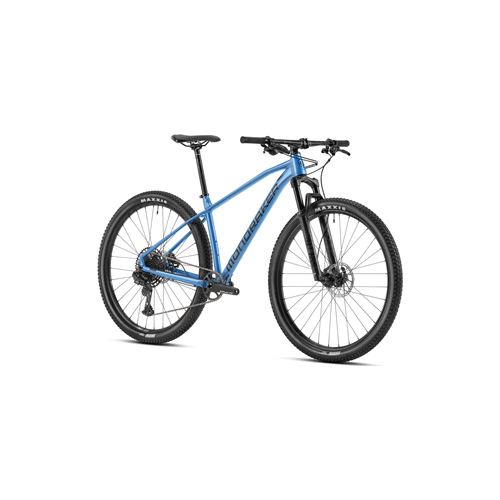

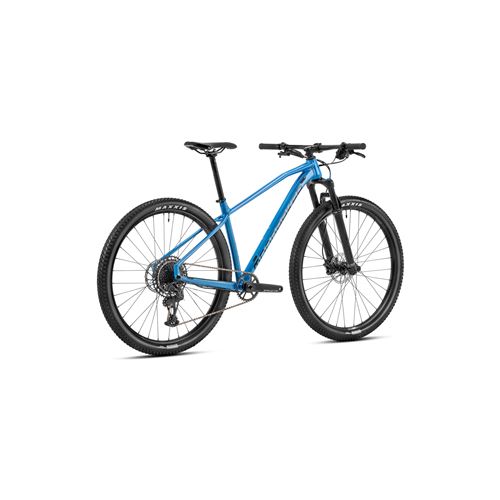

MONDRAKER CHRONO R 2023

MONDRAKER CHRONO R 2023

Its frame made of 6061 Xtralite conified aluminum, enjoys our XC FORWARD GEOMETRY that will provide you with an optimal position to take advantage of all the force applied to the pedals and, great security and confidence when facing descents.

Frame

Chrono 29 6061 Stealth Alloy, XC Forward Geometry, 73mm BSA bottom bracket, profiled steering tube, HHG internal wiring system, 12x148mm Boost rear axle.


Sizes

S: 395mm / M: 430mm / L: 470mm / XL: 520mm


Fork

Fox 32 29 Float GRIP EVOL Rhythm, 100mm, profiled steering tube, 15x110mm Boost axle, 44mm offset. Adjustments: 2pos Push-unlock remote control, low rebound, air preload


Direction

ONOFF Saturn profiled for 1-1/8” to 1-1/2” tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º


Fork remote control

Fox single pull


Stem

ONOFF Sulfur, 6061 T6 Alloy, for 31.8mm handlebar, height +/-7º, size S/M: 60mm, L: 80mm, XL: 90mm


Handlebar

ONOFF Sulfur 0.2, 6061 alloy biconified, height: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm diameter


Grips

ONOFF Twin, 1 lock-on, 135mm


Seatpost

ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, 27.2mm diameter, 400mm long


Saddle

Mondraker XC series, steel rails


Front brake

SRAM Level, two-piece caliper, one-piece 6-bolt IS 160mm Centerline disc, organic pads


Rear brake

SRAM Level, two-piece caliper, one-piece 6-bolt IS 160mm Centerline disc, organic pads


Brake levers

SRAM Level, tool-reach adjustment, lever axle with bushings


Rims

MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes


Spokes

CN round stainless


Front hub

Formula DC20LW, 9x100mm, cone bearings, IS 6 bolts


Rear hub

Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts


Front tire

Maxxis Ikon 29x2.20, 60TPI, rigid rim


Rear tire

Maxxis Ikon 29x2.20, 60TPI, rigid rim


Crankset

Truvativ Stylo 6K Eagle, 12v, Boost, DUB axle, Direct Mount, S: 170mm, M/L/XL: 175mm


Chainrings

34, steel, X-SYNC 2


Bottom bracket

SRAM DUB BSA, sealed bearings, 73mm


Chain

SRAM SX Eagle, 12v, Powerlock


Rear derailleur

SRAM GX Eagle, Type 3 clutch with needle bearings, box lock, 1x12v, X-ACTUATION 1:1


Shift levers - shift paddles

SRAM Trigger SX Eagle, 12v, X-ACTUATION 1:1


Cogs

SRAM PG-1210, 11-50T, 12v


Derailleur hanger

Mondraker M068
