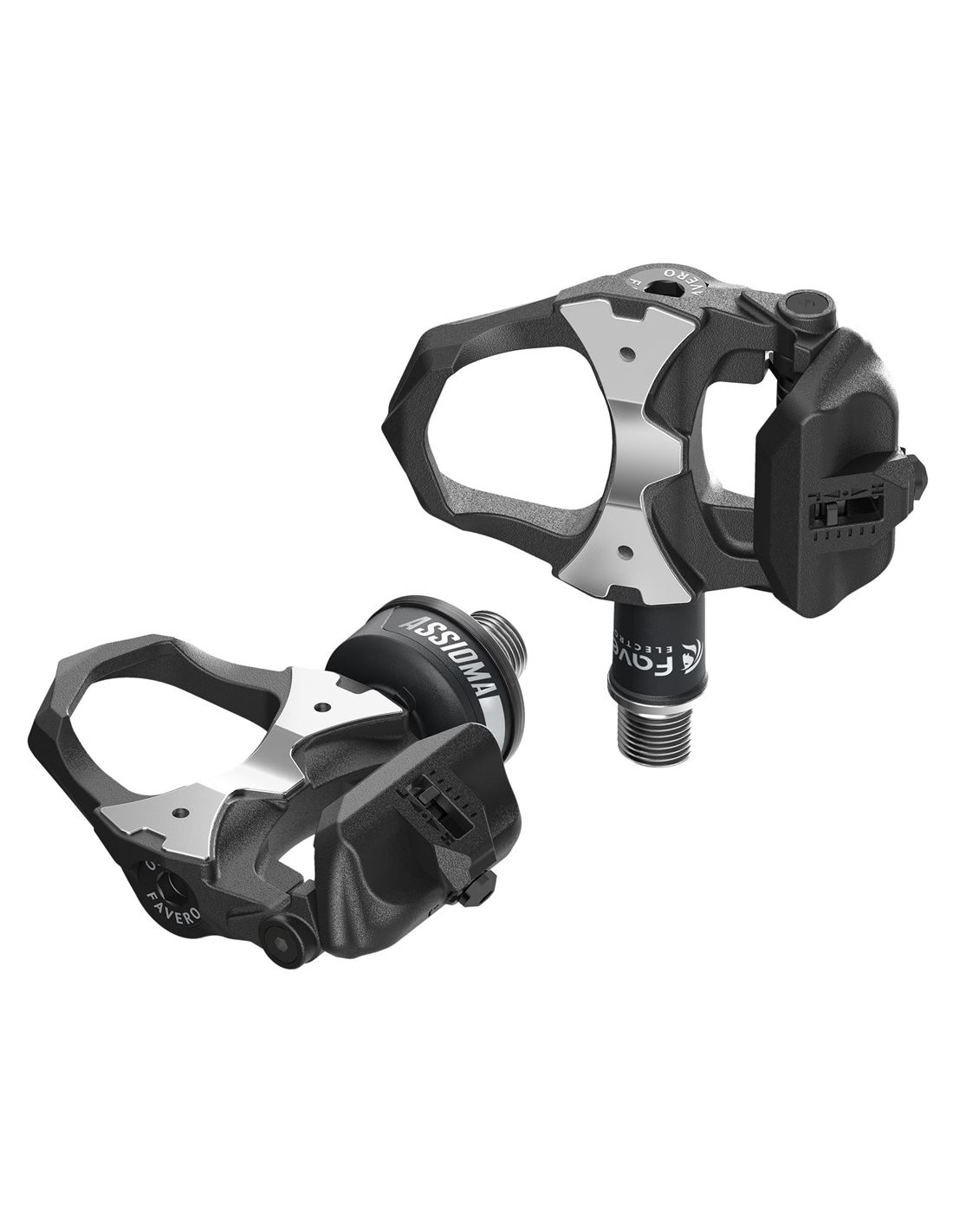

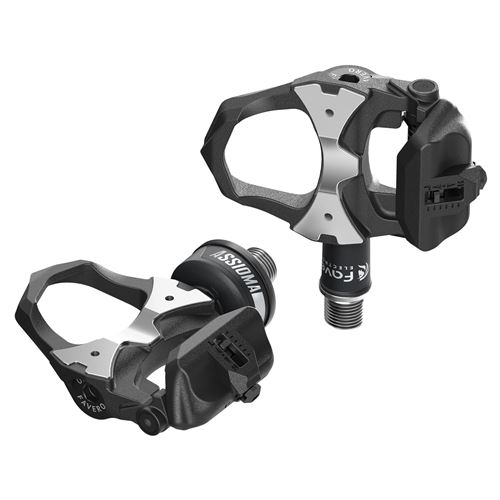

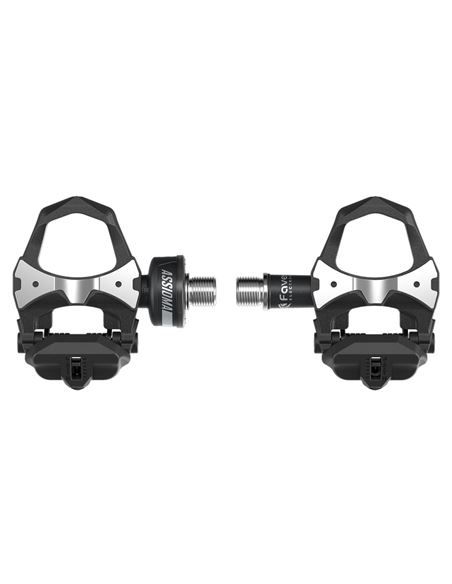

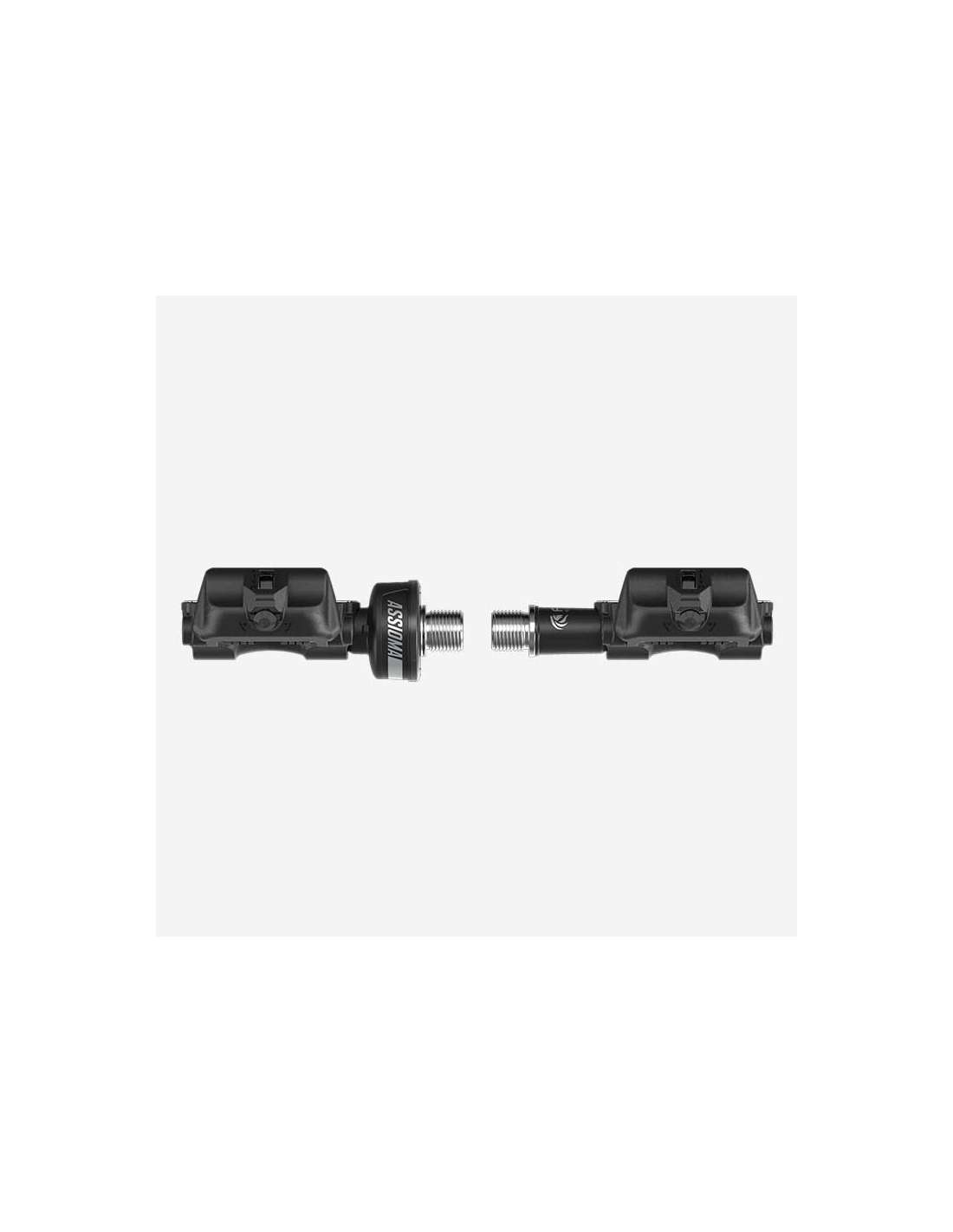

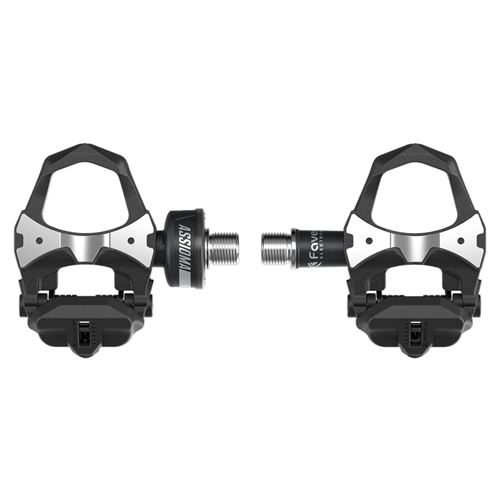

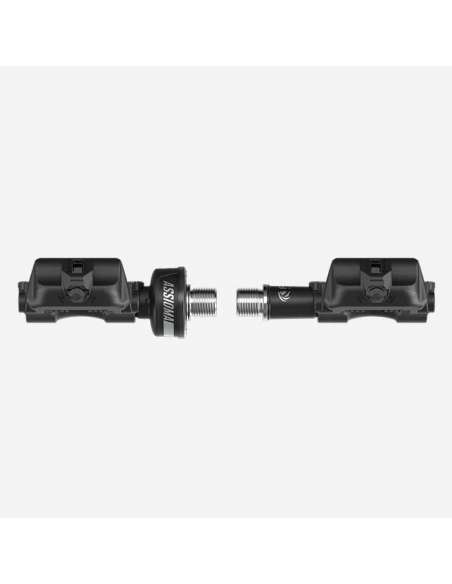

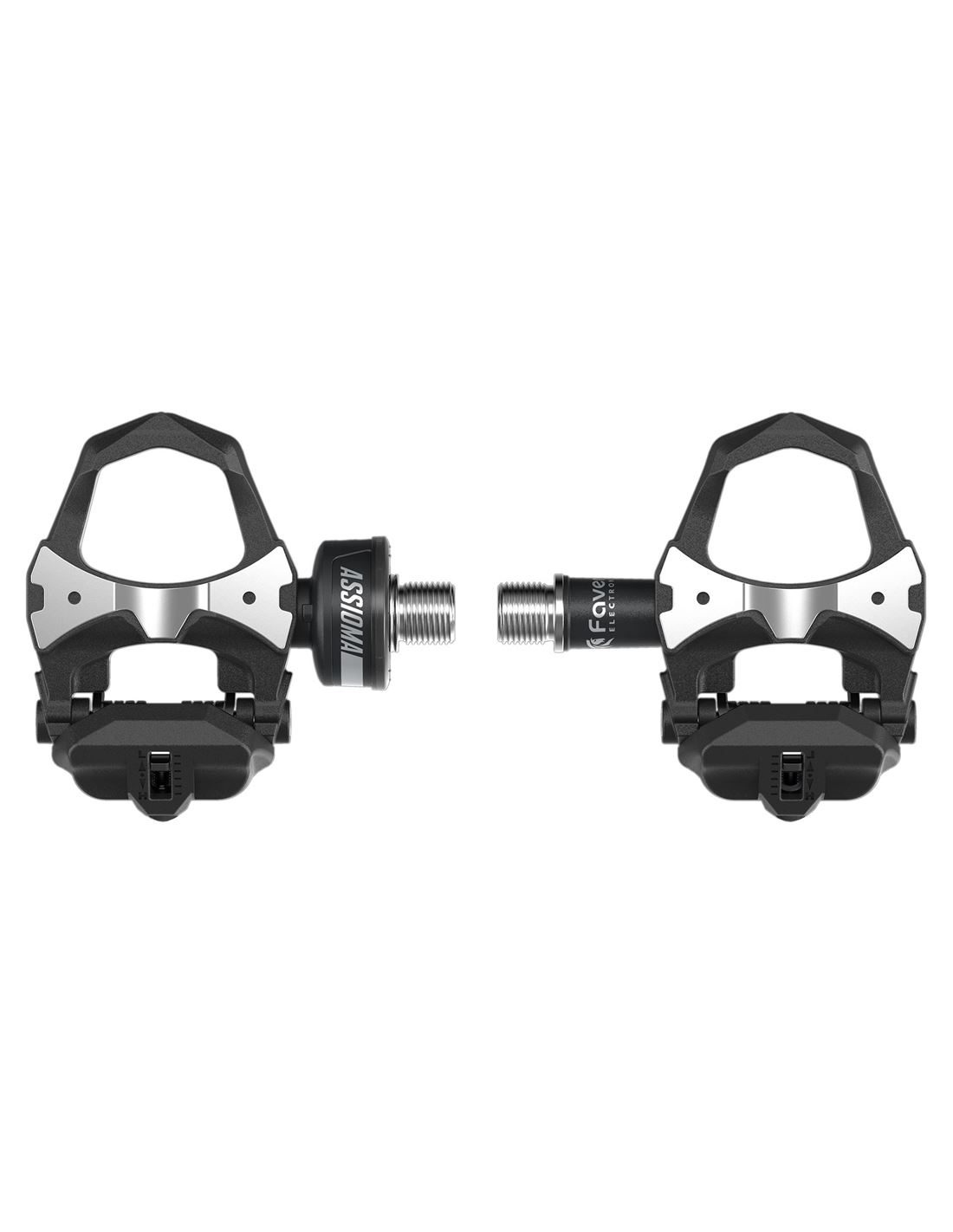

POTENTIOMETER PEDALS ASSIOMA UNO

POTENTIOMETER PEDALS ASSIOMA ONE

• Easy to install
You can install and transfer your potentiometers. Assioma from one bicycle to another just like normal pedals, in a simple way and without additional tools. Just screw them onto the crank arms and you'll be ready to pedal!

• Bluetooth and ANT+ SMART
It communicates via Bluetooth and ANT+ with bicycle computers and smartphones, both for Android and iOS.

• Accuracy and consistency
It provides accurate watt measurements with great consistency and stability in real road use conditions, and at any temperature between -10 ° C and 60 ° C.

• Waterproof, durable and lightweight
Assioma It is the lightest pedal-based power meter ever made. Thanks to its compact design, it never interferes with pedaling. Not even when taking a turn. The power sensors are protected in a block of two-component resin, extremely resistant to shocks and completely waterproof.

• Rechargeable and green
Assioma It is the only power meter based on pedals with integrated rechargeable batteries; a single charge guarantees at least 50 hours of use.

• Tested and guaranteed
Favero Electronics produces each Assioma internally and tests it thoroughly individually.

FEATURES:
• Power sensor in the left pedal

• Cadence sensor: included, built-in

• Total weight per pedal: 149.5 g (battery included)

• Battery type: rechargeable lithium battery

• Battery life: at least 50 hours

• Radiocommunication: Bluetooth v4.0 profile, ANT + PWR (CT + PO)

• Precision power measurement: ± 2%

• Temperature compensation: -10 ° C / + 60 ° C

• Water resistance rating: IP67

• Q Factor: 54 mm

• Hardware update to Assioma DUO always available

• Firmware updates via Bluetooth with the Favero application Assioma

• Compatible cleats: Original cleats LOOK Kéo and Favero (red and black)

• Type of bicycle: racing / road

• Designed and produced in Italy

• Warranty: 2 years Package content:

• Left pedal with power sensor

• Right pedal without power sensor

• Battery charger, including plugs (EU, US, UK, AU)

• 1 micro-USB / USB cable two meters long with magnetic connector

• 2 red coves 6° (compatible with LOOK This term does not appear to be in Spanish. It may be a typo or a term in a different language. Please provide more context.

• Hex key and 4 washers for installation

• User Manual For more information, visit cycling.favero.com.

INSTALLATION:
You can install the power meter pedals. Assioma on the crank of your bicycle in just a few minutes without the help of a mechanic, safely and easily.

Unlike others, there is no need to modify the transmission, remove the wheels, or install external sensors (modules).

Install, remove and move Assioma from one bicycle to another whenever you want with a simple hex key: like a common pedal.

Push the pedals and you're ready to go! Don't worry about any alignment issues, the technology Assioma he/she has already taken care of everything.

POWER METER:
Left/right balance: indicates, as a percentage, the individual power generated by the left leg and the right leg.

The values of L / R Power Balance allows you to control the dominant / non-dominant leg relationship and observe how this varies in relation to different running conditions and physical condition. This can be useful for correcting penalizing imbalances: also in post-traumatic rehabilitation programs.

Unlike others, the power meter pedals Assioma These metrics are returned through actual double-sided measurements, not estimates.

CADENCE:
Indicates the number of revolutions made by the pedal in one minute (rpm).

The integrated cadence sensor Assioma It constantly detects and transmits this value to the bicycle's computer: therefore, it is superfluous to use a separate cadence sensor.

Torque Effectiveness (TE): indicates, as a percentage, the amount of power generated during a pedal stroke that actually contributed to the cyclist's propulsion.

This value is based on Positive Power (P +), which pushed the pedal forward, and Negative Power (P -), which pushed in the opposite direction, applied to the crank on each revolution.

The negative power can be counteracted by helping the foot to "rise again" in the recovery phase: pulling it by the geared shoe.
A 100% effectiveness of the torque is achieved when no negative power has been accumulated during a pedal stroke. The typical TE value can vary between 60% and 100%.
Assioma ONE indicates the value of Pair Effectiveness for the left leg; while that Assioma DUO provides data for both the left and right leg.

Pedal Smoothness (PS): indicates, as a percentage, how evenly power is distributed in a full revolution of a pedal stroke. A value of 100% means that power is delivered constantly throughout the entire revolution: the higher the value, the more "rounded" the pedaling will be.


OTHER FEATURES:
The softness of the pedal is identified by correlating the average power (Pavg) with the maximum power (Pmax) measured in a single 360° rotation of the pedal.

Assioma ONE indicates the PS value of the left leg; while Assioma DUO provides separate data for both the left and right leg.
